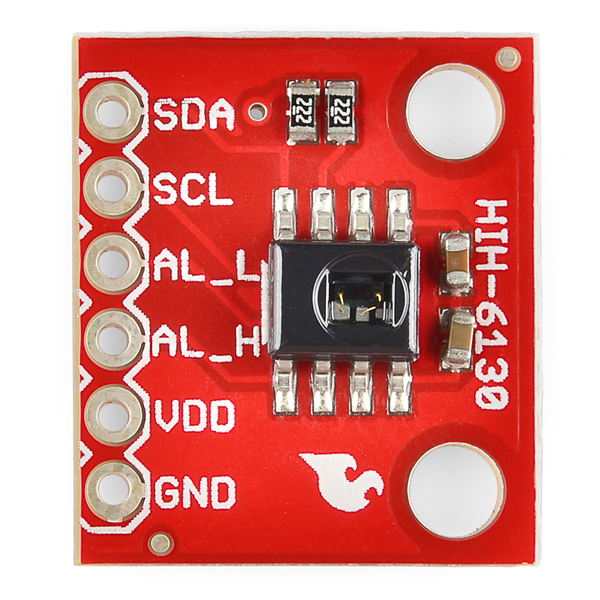

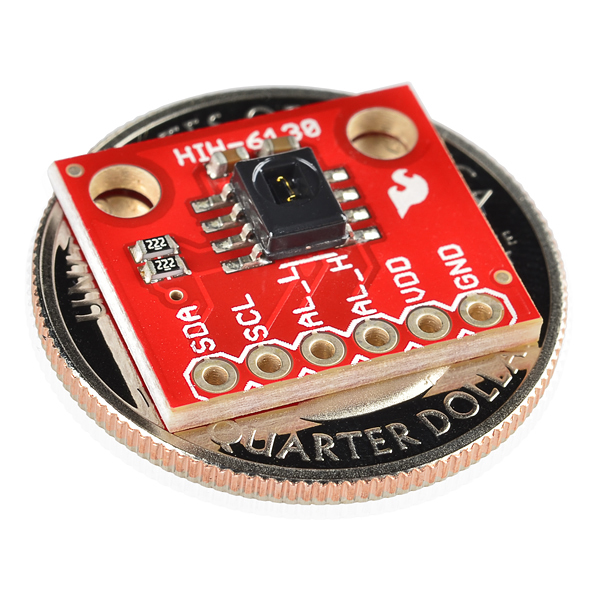

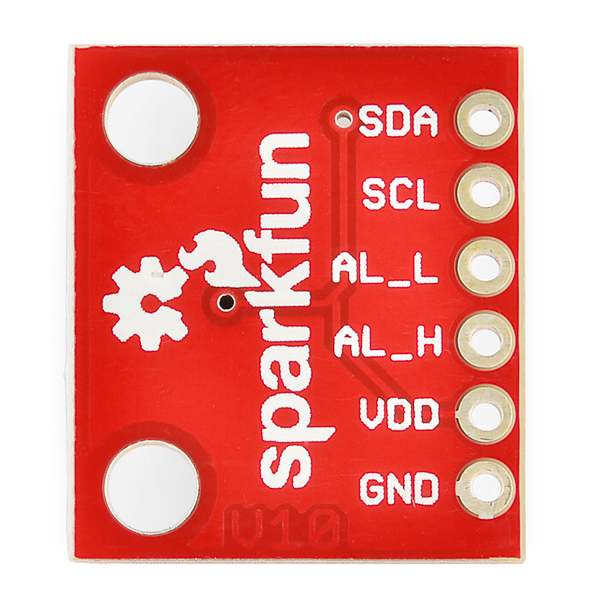

SparkFun Humidity and Temperature Sensor Breakout – HIH6130 溫濕度感測器模組

台灣智能感測科技官網, 購買更多關於 HIH6130, Humidity, I2C, SparkFun, Temperature, 溫度, 溫濕度感測, 濕度, 的產品

產品編號： SNT-000751

SparkFun Humidity and Temperature Sensor Breakout – HIH6130 溫濕度感測器模組 美國 SparkFun 原裝進口
HIH6130是一款數字輸出型相對濕度（RH）和溫度傳感器組合在一起的封裝。這樣可以對RH測量進行溫度補償，並提供第二個獨立的溫度傳感器輸出。這個接線板為您提供了SOIC封裝中每個引腳的標準0.1英寸的接頭，使您的下一個濕度傳感應用的原型更容易。與HIH6130的通信很容易通過使用庫“I2C” “

工作電壓：2.3-5.5v
補償濕度範圍：10-90％RH
補償溫度 範圍5-50°C
真正的溫度補償數字I2C輸出
寬工作溫度範圍允許在許多應用中使用

原廠技術文件與範例

Schematic 概要
Eagle PCB設計圖
Datasheet (HIH6130)
Hygrometer Reconditioning Note
Arduino Code
I2C Instructions
Entering and Using Command Mode
GitHub (Design Files)


SparkFun Humidity and Temperature Sensor Breakout – HIH6130
It’s not the heat but the humidity that gets you, at least that’s what they say. Really, both are important, what you need is a sensor that combines humidity and temperature readings. How about this Honeywell HumidIcon Digital Humidity/Temperature Sensor? The HIH6130 is a digital output-type relative humidity (RH) and temperature sensor combined in the same package. This allows the RH measurement to be temperature compensated and provides a second, standalone temperature sensor output. This breakout board gives you standard 0.1″ spaced headers for each of the pins on this SOIC package, making it a lot easier to prototype your next humidity-sensing application. Communication with the HIH6130 is easily achieved over I2C using libraries like “Wire.h”
規格與特色

Operating Voltage: 2.3-5.5v
Compensated humidity range: 10-90% RH
Compensated temp. range 5-50°C
True temperature-compensated digital I2C output
Wide operating temperature range allows for use in many applications



更多關於 SparkFun Humidity and Temperature Sensor Breakout – HIH6130 溫濕度感測器模組 的技術文件與範例
