SparkFun Humidity Sensor Breakout – HIH-4030 濕度感測器模組

台灣智能感測科技官網, 購買更多關於 HIH-4030, Humidity, SparkFun, 濕度, 的產品

產品編號： SNT-000761

SparkFun Humidity Sensor Breakout – HIH-4030 濕度感測器模組 美國 SparkFun 原裝進口
SparkFun Humidity Sensor Breakout – HIH-4030 濕度感測器模組。HIH-4030測量相對濕度（％RH）並將其作為模擬輸出電壓輸出。您可以將傳感器的輸出直接連接到微控制器上的ADC; 而且，由於傳感器接近線性電壓輸出，數據處理非常簡單。施加於電源引腳的電壓應在4-5.8VDC之間，最好在5V。傳感器通常只消耗大約200μA。
原廠技術文件與範例

Schematic 概要
Eagle PCB設計圖
Hookup Guide 使用教學說明
Datasheet (HIH4030)
Hygrometer Reconditioning Note
GitHub (Design Files)

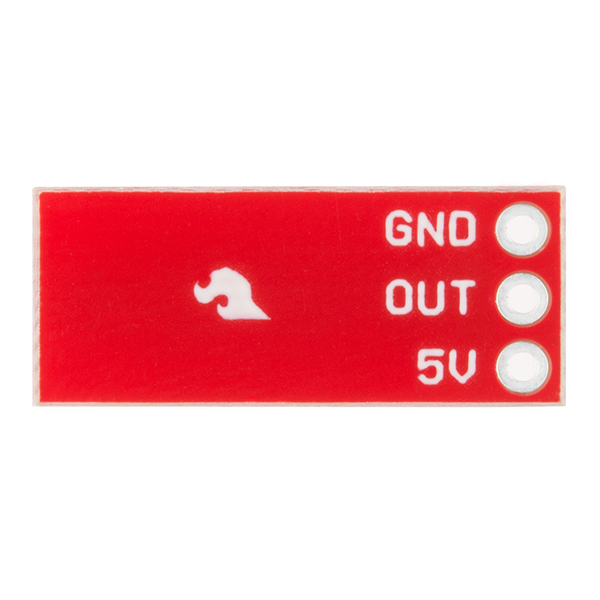

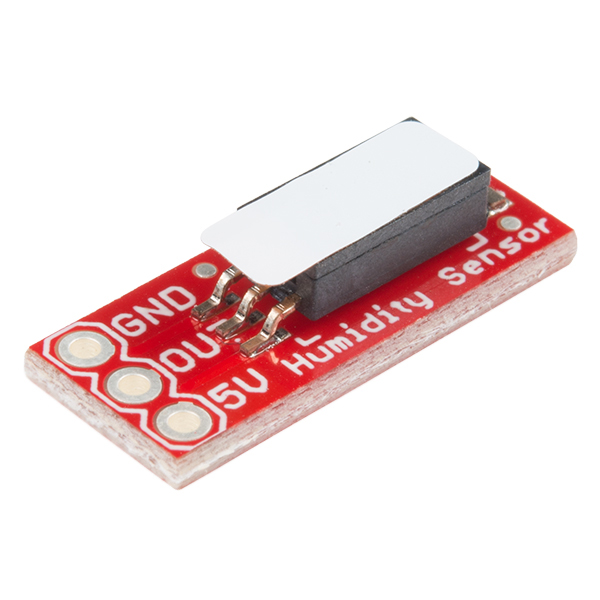

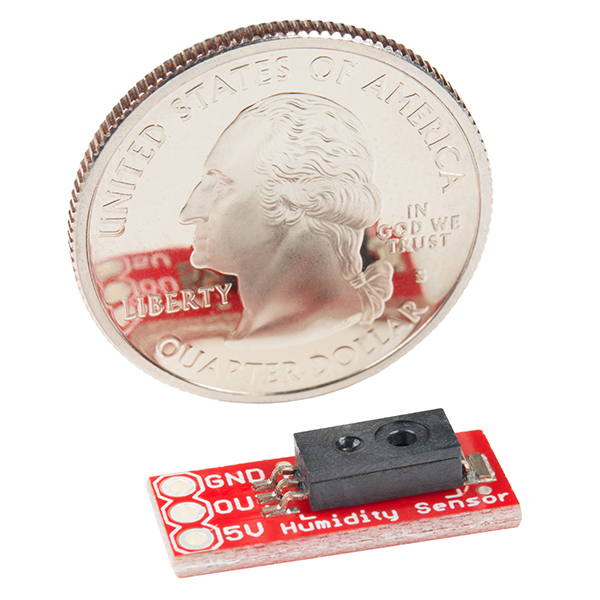

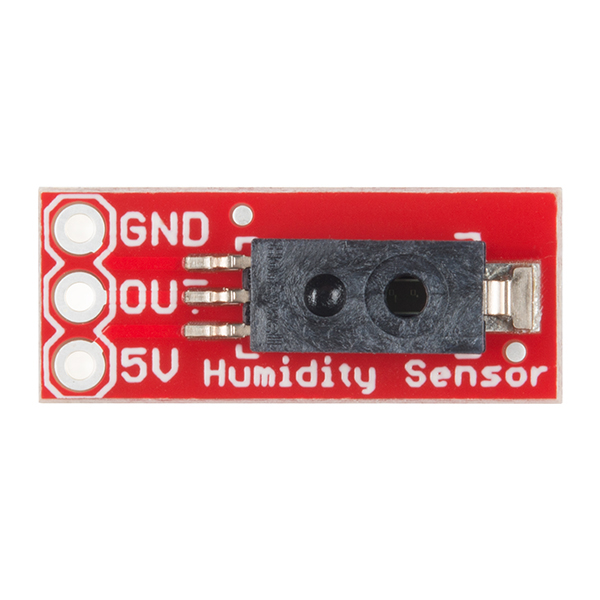

This is a breakout board for Honeywell’s HIH-4030 humidity sensor. The HIH-4030 measures relative humidity (%RH) and delivers it as an analog output voltage. You can connect the output of the sensor directly to an ADC on a microcontroller; and, thanks to the sensor’s near linear voltage output, the data is very easy to process. Voltage applied to the supply pins should be within 4-5.8VDC, and optimally at 5V. The sensor will typically only consume about 200μA. This product comes as shown in the picture, with the HIH-4030 soldered onto the breakout board. The pins of the 3-pin header are spaced by 0.1″. Get Started with the HIH-4030 Breakout Guide
規格與特色

Near linear, analog output
4-5.8VDC voltage supply
All pins broken out to a 0.1″ pitch header
Laser trimmed interchangeability
Low power design, typical current draw of only 200μA
Enhanced accuracy
Fast response time
Stable, low drift performance
0.75 x 0.30 “ (19.05 x 7.62 mm)



更多關於 SparkFun Humidity Sensor Breakout – HIH-4030 濕度感測器模組 的技術文件與範例
